| Boot the machine via Clonezilla live |
In this example, the machine will run as a Clonezilla lite server, which can be used to deploy an image to many computers. Assume we already have a Clonezilla image in sdb, the image name is called "bookworm-2023-10-15-03-img" and will be deployed to other computers using multicast mechanism. We will use the existing DHCP service in the LAN when providing network booting service for clients:
root@debian:/home/partimag# ls -l
total 20
drwxr-xr-x 2 root root 4096 Oct 15 03:33 bookworm-2023-10-15-03-img
drwx------ 2 root root 16384 Oct 15 02:47 lost+found
root@debian:~# ls -lh /home/partimag/bookworm-2023-10-15-03-img/
total 1.3G
-rw-r--r-- 1 root root 901 Oct 15 03:33 blkdev.list
-rw-r--r-- 1 root root 770 Oct 15 03:33 blkid.list
-rw-r--r-- 1 root root 8.0K Oct 15 03:33 clonezilla-img
-rw-r--r-- 1 root root 218 Oct 15 03:33 dev-fs.list
-rw-r--r-- 1 root root 4 Oct 15 03:33 disk
-rw-r--r-- 1 root root 1.2K Oct 15 03:33 efi-nvram.dat
-rw-r--r-- 1 root root 118K Oct 15 03:33 Info-dmi.txt
-rw-r--r-- 1 root root 236 Oct 15 03:33 Info-img-id.txt
-rw-r--r-- 1 root root 67 Oct 15 03:33 Info-img-size.txt
-rw-r--r-- 1 root root 73K Oct 15 03:33 Info-lshw.txt
-rw-r--r-- 1 root root 4.6K Oct 15 03:33 Info-lspci.txt
-rw-r--r-- 1 root root 824 Oct 15 03:33 Info-OS-prober.txt
-rw-r--r-- 1 root root 198 Oct 15 03:33 Info-packages.txt
-rw-r--r-- 1 root root 101 Oct 15 03:33 Info-saved-by-cmd.txt
-rw-r--r-- 1 root root 980 Oct 15 03:33 Info-smart.txt
-rw-r--r-- 1 root root 15 Oct 15 03:33 parts
-rw------- 1 root root 2.5M Oct 15 03:32 sda1.vfat-ptcl-img.zst
-rw------- 1 root root 1.3G Oct 15 03:33 sda2.ext4-ptcl-img.zst
-rw------- 1 root root 315K Oct 15 03:33 sda4.ext4-ptcl-img.zst
-rw-r--r-- 1 root root 36 Oct 15 03:33 sda-chs.sf
-rw-r--r-- 1 root root 17K Oct 15 03:33 sda-gpt-1st
-rw-r--r-- 1 root root 16K Oct 15 03:33 sda-gpt-2nd
-rw-r--r-- 1 root root 18K Oct 15 03:33 sda-gpt.gdisk
-rw-r--r-- 1 root root 724 Oct 15 03:33 sda-gpt.sgdisk
-rw-r--r-- 1 root root 512 Oct 15 03:33 sda-mbr
-rw-r--r-- 1 root root 440 Oct 15 03:33 sda-pt.parted
-rw-r--r-- 1 root root 392 Oct 15 03:33 sda-pt.parted.compact
-rw-r--r-- 1 root root 684 Oct 15 03:33 sda-pt.sf
-rw-r--r-- 1 root root 53 Oct 15 03:33 swappt-sda3.info
Now the image "bookworm-2023-10-15-03-img" will be deployed to other machine's sda.
Once you have the bootable Clonezilla Live CD/DVD or USB flash drive, you can boot the machine you want to clone via Clonezilla live. Remember to use the Clonezilla live CD or USB flash drive to boot the machine. For example, if you have Clonezilla Live in USB flash drive, you have to boot it via USB device (Ex. USB-HDD or USB-ZIP). If necessary, you can set the first boot priority in the BIOS as USB-HDD or USB-ZIP so that it can boot Clonezilla Live from your USB flash drive.
Here we take CD as an example. You can either set CD as first boot priority in machine's BIOS like this:
Or by pressing a hotkey (e.g., Esc, F8, F9 or maybe F12) when you boot the machine, you will see the boot menu of BIOS like this:
Check your motherboard manual for more details about how to boot your machine via CD.
|
| The boot menu of Clonezilla live |
Here is a screenshot of Clonezilla Live boot menu:
The first one is the default mode for Clonezilla Live. It will default to framebuffer mode with a resolution of 800x600.
The 2nd one "(VGA 800x600 & To RAM)", is the same function with the 1st one except when Clonezilla live booting finishes, all the necessary files are copied to memory. Therefore you can remove the boot media (CD or USB flash drive) then. In addition to use the arrow key to choose, you can also press "r" to choose that.
The 3rd one "(VGA with large font & To RAM)" is for you to use large font, especially when you have 4K monitor, and it will all the necessary files will be copied to memory. In addition to use the arrow key to choose, you can also press "l" to choose that.
The 4th one "(Speech synthesis)" is for the blind to use, which can be chosen by pressing "s" key.
There are more modes which you can choose in the 5th choice "Other modes of Clonezilla live", e.g. 1024X768 or 640x480 one if you want, as shown here:
The choice, "KMS" is for you to use KMS (Kernel Mode Setting) for your graphics card. If you have some problem to use the framebuffer mode of your graphics card, you can try it.
If you do not need Chinese, Japanese or Korean environment or if your computer experiences problems in the framebuffer mode, you can choose the one "Clonezilla Live Safe graphic settings (vga=normal)" to clone in the English environment.
The choice, "Clonezilla live (Failsafe mode)", is for something goes wrong when you are not be able to boot your machine, such as ACPI of your machine is not supported in the kernel.
If you want to boot local OS in your hard drive, you can choose the one "Local operating system in hard drive (if available)". This is an extra function in the boot media that has nothing to do with Clonezilla Live.
The choice, "Memtester (VGA 800x600 & To RAM)" is for memory testing using Memtester. This is an extra function in the boot media that has nothing to do with Clonezilla Live.
The choice, "Memory test using Memtest86+," is for memory testing using Memtest86+. This is an extra function in the boot media that has nothing to do with Clonezilla Live.
The choice, "Network boot via iPXE" is used to perform a network boot via iPXE. If your computer does not have a PXE network, you can use this to do boot from a network. This is an extra function in the boot media that has nothing to do with Clonezilla Live.
The choice, "uEFI firmware setup" is used to enter uEFI BIOS settings.
|

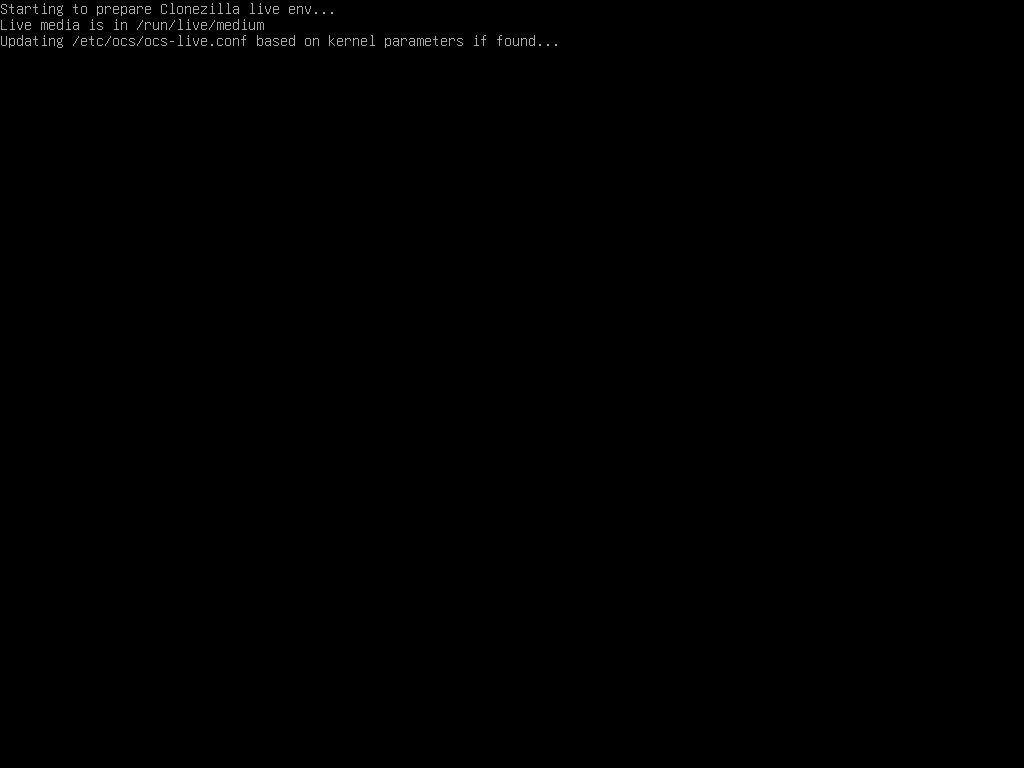

| Here we choose 800x600 mode, after pressing Enter, you will see Debian Linux booting process |
|

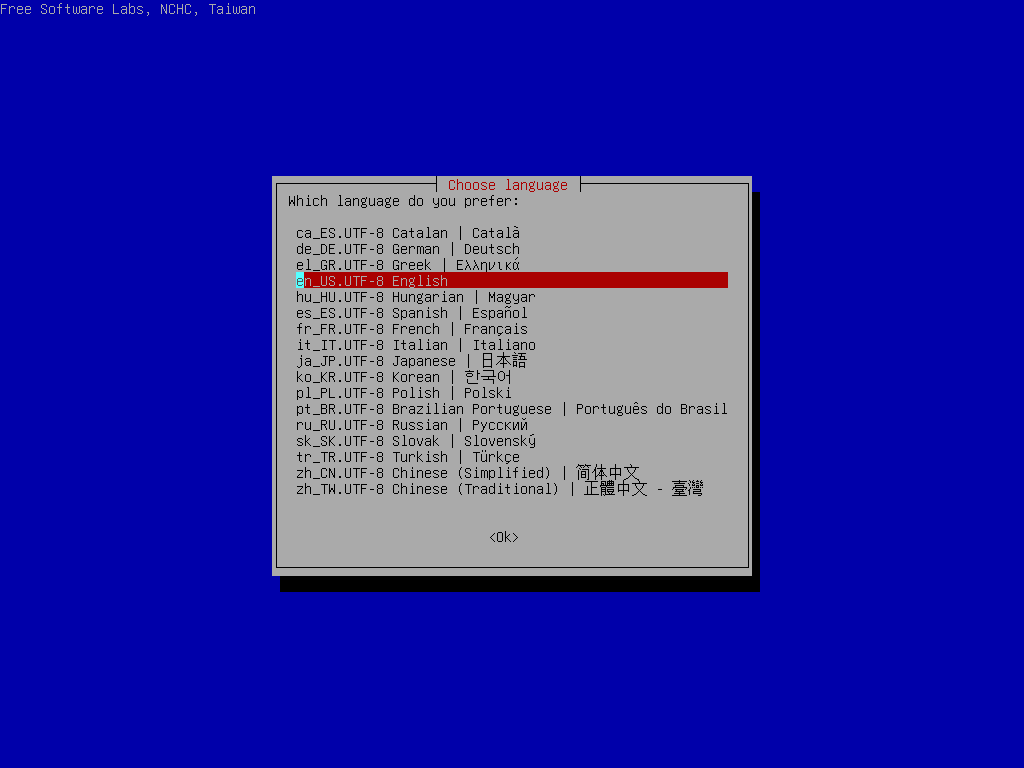

| Choose language |
|
| Choose keyboard layout |
The default keyboard layout is US keyboard, therefore if you are using US keyboard, just press enter (i.e. use the option "Keep the default keyboard layout - US keyboard").
If you want to change keyboard layout, you can choose "Change keyboard layout", then follow the dialog menu to change that.
|

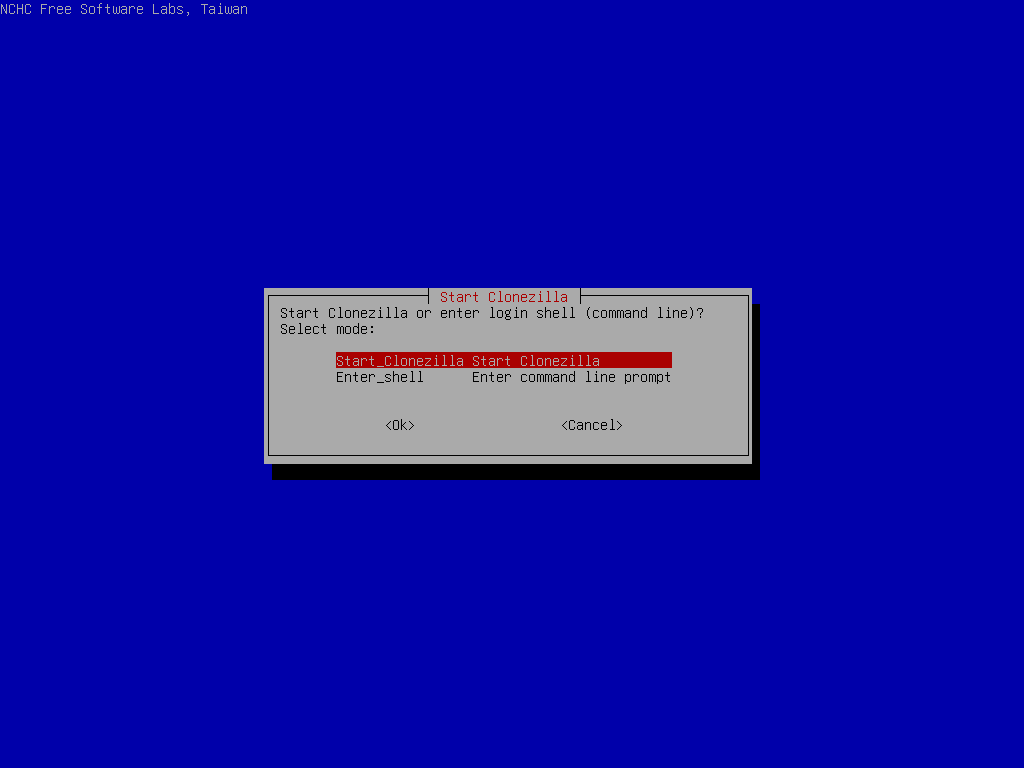

| Choose "Start Clonezilla" |
|
| Choose "lite-server" option |
Start Clonezilla lite server
Now choose start Clonezilla lite server:
Decide the client machine booting mechanism. Here we choose clients will boot from network (PXE or uEFI network booting):
Here we choose to detect DHCP service automatically. If the existing one is found, we can reuse it. Otherwise we have to start our own DHCP service:
So now Clonezilla lite server will detect the existing DHCP service. Once it is found, the Clonezilla lite server will borrow (reuse) the existing service, i.e., relay the client's DHCP request to the existing DHCP server:
The existing DHCP service in the LAN has been detected, so now Clonezilla lite server will relay the client's DHCP request to existing DHCP service.
//NOTE// Pay attention to the prompt. You have to make sure the DHCP service will provide enough IP addresses to all the clients. Besides, this mechanism is risky because all the PXE or uEFI network booting clients will enter DRBL or Clonezilla mode. Please make sure this is what you want.
|
| Now we have to mount the image repository. |
Choose "local_dev" option to assign sdb1 as the image home
There are other options, e.g. sshfs, samba, nfs or webdav, AWS S3 or Openstack Swift, you can use when network is available. This is very useful when 2nd local disk is not available.
Since we choose "local_dev" option, we can use 2nd disk or USB flash drive to save 1st disk's image. If using USB flash drive as repository, inster USB flash drive and wait a few secs.
Clonezilla will scan the disks on the machine in every few secs, and show you the results:
Once you see the device you have inserted shown on the status, you have to press Ctrl-C to quit the scanning report.
|
| Select sdb1 as image repository, then choose "restoredisk" option |
Before mounting the device sdb1, it allows you to do a file system check. Here we skip it.
If you are not familiar with the disk or partition name in GNU/Linux, read the hints:
'The partition name is the device name in GNU/Linux. The first partition in the first disk is "sda1", the 2nd partition in the first disk is "sda2", the first partition in the second disk is "sdb1" or "sdb1"... If the system you want to save is MS windows, normally C: is sda1, and D: could be sda2, or sda5...'
Choose the directory name on /dev/sdb1 as the image repository. Here we put image on the top directory (i.e., Current selected dir name is "/"):
Then Clonezilla shows you the disk usage report:
Here we choose "Beginner" mode:
If you choose "Expert" mode, you will have some chances to choose advanced parameters, e.g. imaging program, compression program, etc.. You can see more details here.
Since we will do massive deployment, now choose "massive-deployment":
We'd like to restore the image to other client machines, so now choose "from-image":
If we'd like to deploy the system in the local hard drive without an image, we should choose "from-device". However, if this is the case, later only the mechanism "bittorrent" will be available, no "multicast" or "broadcast" can be chosen.
Now select "restoredisk" option:
|
| Select image name and destination disk |
Choose the Clonezilla live image as source image:
Select the destination disk "sda" we want to restore in the clients:
Choose the option to create the partition table on the destination. First choice is to use the partition table from image, 2nd choice is to create the partition table proportionally, i.e., if you have the image which is samved from a smaller disk, here you can create the partitions proportionally on the destination disk:
Choose to check the image integrity before really restoring the image to disk sda:
It's recommended to check the image before restoring it because you do not know if the image is broken or not. If you are very sure that the integrity is OK, then of course you can choose "-scr" to skip checking.
Select the mode you want after the image restoring is done in the client machines:
By default we choose "-p reboot" here. But if you have decided, you can choose poweroff the machine, choose in the client when the clone finishes, or do nothing after is restored.
Select to use multicast, broadcast or bittorrent mechanism. Here we take multicast as the example:
Choose the method for multicast mode as clients+time-to-wait, i.e., we will assign the number of client machines and the time we will wait before the multicast mode starts:
Enter the number of clients. We here assume we will have 10 machines to deploy:
Moreover, we will wait until 300 secs before 10 client machines connect. For example, if only 9 machines connect to this lite server, and the time has passed 300 secs, the multicast deployment will start without waiting for the 10th client machine:
Since we choose to check the image before deploying, now Clonezilla will check the image integrity:
Clonezilla will prompt us the command to restore the image. This command is very useful when you want to create a customized Clonezilla live. In addition, it now starts all the services on the server and wait for the network booting clients to boot and receive the image to restore to the disk /dev/sda:
As described in the screen, only when all clients have finished jobs you can press "y" to terminate the required services. Do not press "y" if there are some clients still restoring.
Now you can boot the client machine via PXE or uEFI network booting to receive the image and write to its disk /dev/sda. All the steps in the client machine should be in unattended mode.
Once all the clients are done, you can press "y" twice to terminate the required services:
Check the prompt in the end. Once you press "Enter", Clonezilla will show you the prompt to poweroff, reboot, or rerun...
|
|
